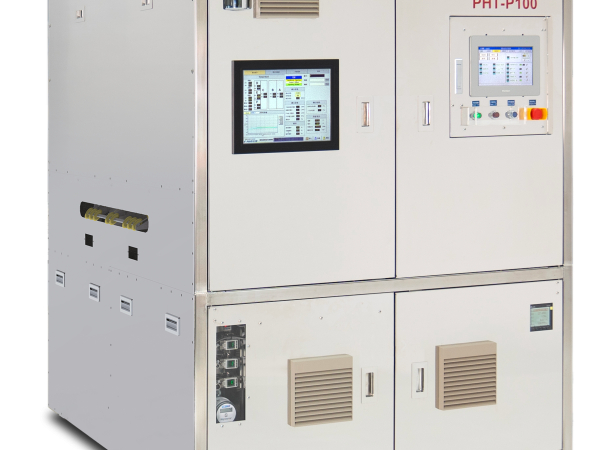

Substrate size: Length: 250 ~ 610m/m Width: 250 ~ 610 m/m Thickness: 0.05 (without copper; unilateral copper thickness>=1/3oz) ~ 2 mm

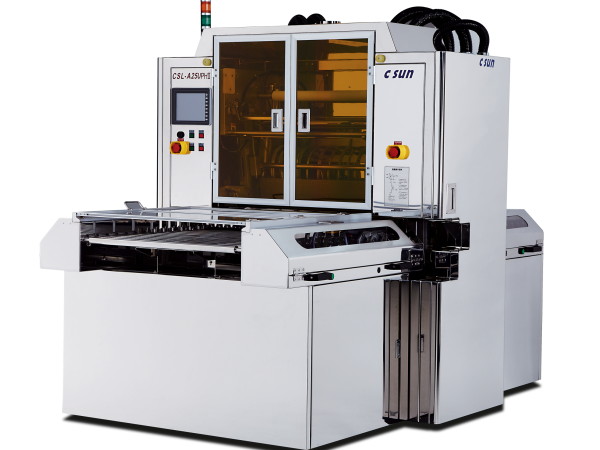

1.Panel Dimension Length:250~640mm(10” ~ 25”) Width:250~640mm (10”~25”) Thickness:0.05 (including copper)~1.6mm 2.Dry film Dimension Width:250~610mm(10”~24”) Thickness:15~76µm(0.6~3.0mil) Supply roll diameter: Ø80mm

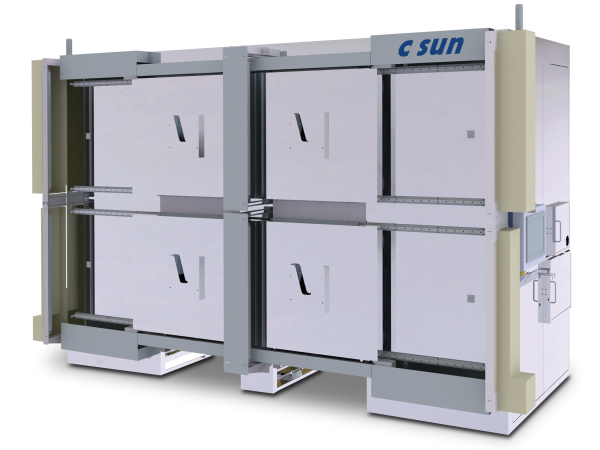

internal size：750x610x710  *4 Chamber Temperature：Ambient+25~200°C Uniformity：±３°C Cleanliness：Class 100

Leading side Width 510mm  Thickness : 0.4~3mm

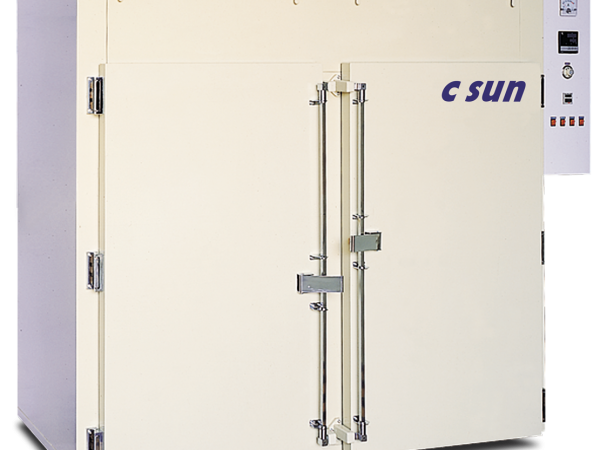

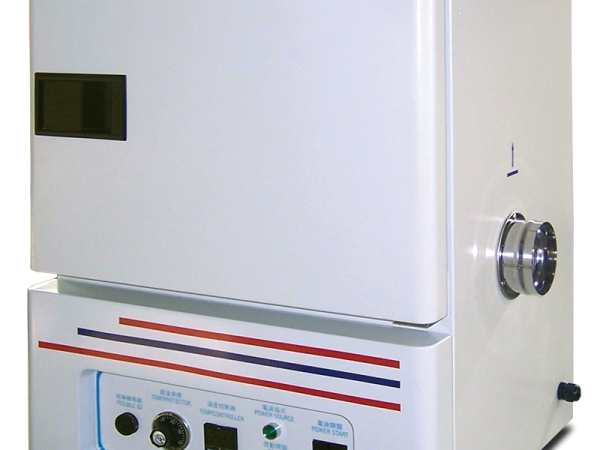

Internal dimension (W/D/H cm) SMO-1B 45/40/40 SMO-3 60/50/90 SMO-4 80/60/100 SMO-5 100/60/100 SMO-6 120/60/100 SMO-7 140/60/120 SMO-8 160/80/140 SMO-9 180/100/140 SMO-10 180/140/140

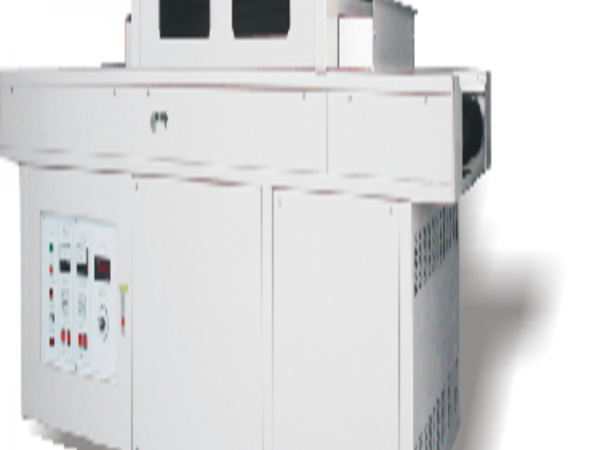

1.Mercury UV lamp, 5.0/7.5 kw x 2 pcs. 2.UV lamp intensity : 80/120 W/cm. 3.Conveyor speed : 6 ~ 30 m / min. 4.Conveyor type : Teflon Belt 5.Effective width : 550 / 625 mm 6.Options : Cold Mirror

Panel Dimension： Panel size：254*304mm(10″*12″)~558.8*635mm(22″~25″) Panel thickness：0.05~3.2mm Film size：24″*27″ Dimension(W/D/H)：5570/2955/2375(mm)
