Refer to the catalog

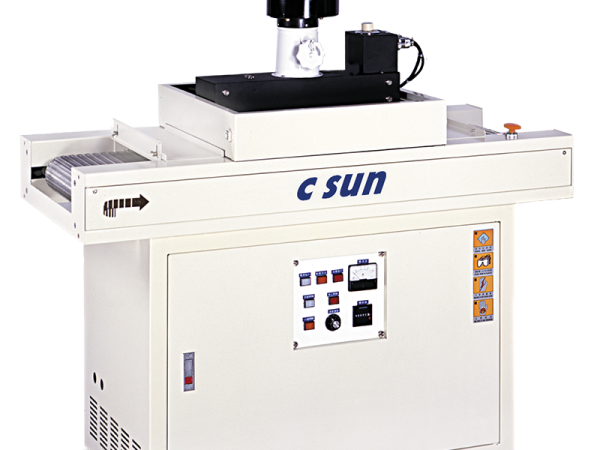

1.Capillary Lamp : 2.0kw x 1 2.Conveyor Speed : 2~10 m/min 3.Conveyor width : 280 mm 4.Effective width : 220 mm 5.Conveyor Height : 770+50 mm 6.Dimensions : L / W / H (cm) : 120L/51W/119H

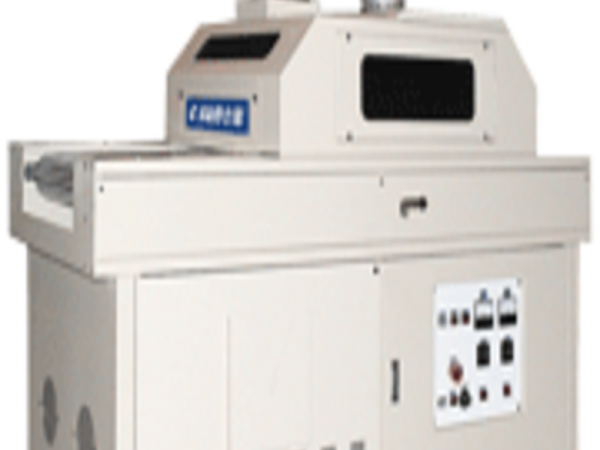

1.Mercury UV lamp, 3.2 kw x 2 pcs. 2.UV lamp intensity : 60/80 W/cm. 3.Conveyor speed : 4 ~ 20 m / min. 4.Conveyor width : 400 mm 5.Effective width : 350 mm 6.Pass line height : 770 + 50 mm 7.Dimensions : L / W / H (cm) : 176 / 75 / 135

Refer to the catalog

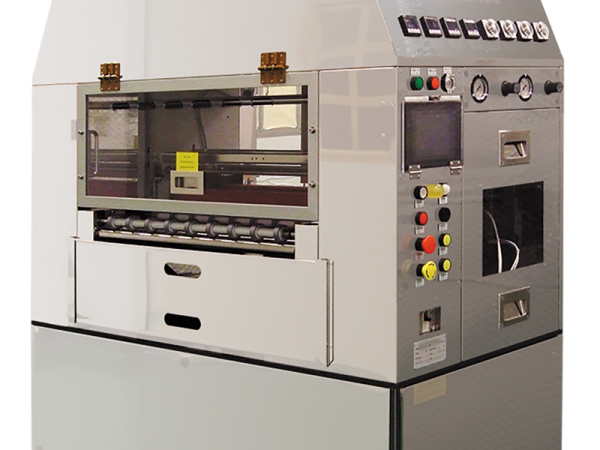

Lamination process： Conveyor speed：1~5m/min(adjustable) Pressure：2~4kg/cm² Dimension： External dimensions：L1280*W6540*H2263(mm)

Extenior dimension(W/D/H)：10668/1840/2400(mm)

Economizer(W/D/H mm)：942/265/394

Substrate size：G3.5~G10.5 Real time monitor of UV light density with real time power output control function Adopt electronic ballast that can control power output precisely Precise temperature control system UV lamp abnormal monitor

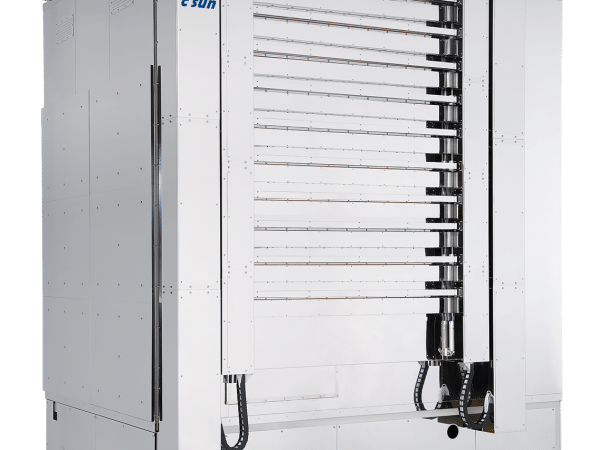

Substrate size：G3.5~G10.5 Temperature range：120℃~350℃ Excellent temperature uniformity：≦±3℃ O2 control：3%~30%, ±1% Cleanliness level：Class 10/100/1,000 Transportation：Robot Recipe edit

Substrate size：G3.5~G10.5 Temperature range：120℃~450℃ Excellent temperature uniformity：≦±3℃ O2 control：3%~30%, ±1% Cleanliness level：Class 10 Transportation：Robot Recipe edit
